Can I use a Z Curve MCB in a home distribution box?

Technically yes, but we usually don’t recommend it. Common home loads like lighting, sockets, air conditioners, and refrigerators — all have startup inrush currents but are not considered “sensitive electronic equipment.” Using a Z-Curve for ordinary appliances may cause frequent nuisance tripping due to motor or compressor startup, affecting daily life. For home use, C-Curve is the more conventional and sensible choice.

Can a Z Curve MCB protect motors?

Generally not recommended. Motors and transformers draw large inrush currents during startup — often 5–10 times their rated currents. A Z-Curve MCB trips instantly at 2–3× In, so the motor won’t even start. For motor protection, choose K-Curve (8–14× In) or D-Curve (10–20× In). Z-Curve is designed for sensitive electronic loads with very low inrush current, not motors.

What is the difference between Z Curve and K-Curve MCB?

Both of them are less common industrial curves, but they serve opposite purposes. Z-Curve trips at 2–3× In — ultra-sensitive, designed to protect precision electronic equipment from minor overcurrent damage. K-Curve trips at 8–14× In — motor-friendly, able to withstand motor startup surges while providing thermal overload protection (1.05–1.2× In thermal trip). In short: Z is for sensitive gear, K is tough gear.

How do I know if my equipment needs a Z Curve MCB?

Check your equipment’s inrush current during startup. As a general rule: if the inrush current is less than 3 times the rated current (3× In) and your equipment is sensitive electronics, go with Z Curve. For inrush between 3–5× In, choose B Curve. For 5–10× In or general-purpose loads, C Curve is the right fit. And for heavy inrush above 10In—typical for large motors and transformers—you will need D-Curve. If you are not sure about your equipment’s inrush current, check the nameplate for “starting current” or “inrush current” specifications, or consult your equipment manufacturer for guidance.

Can a Z Curve MCB be used in DC circuits?

It depends on the specific model. Some Z Curve MCBs are rated for both AC and DC, but you must check the DC ratings in the datasheet — the same product typically has a lower breaking capacity in DC than in AC (because DC arcs are harder to extinguish). Never assume an AC-rated MCB can be used in a DC circuit. Always confirm that the datasheet explicitly lists DC voltage and current ratings.

Which standard does a Z Curve MCB comply with? IEC 60898 or IEC 60947?

Z Curve MCBs are typically manufactured to IEC/EN 60947-2 (the industrial standard for circuit breakers), not the household standard IEC/EN 60898-1. IEC 60947-2 has higher requirements for breaking capacity, electrical endurance, and overload characteristics. If your Z Curve MCB is for industrial equipment export, you must confirm it complies with IEC 60947-2 — this is a basic requirement for industrial buyers in the European market.

How much more does a Z Curve MCB cost compared to a C-Curve?

Z-Curve MCBs are industrial-grade specialty products with much lower production volumes than general-purpose C-Curve types. The price is typically 50% or more higher than the same specification C-Curve. The cost difference comes from: smaller production runs, with higher tooling and production line costs per unit. more complex manufacturing with precision-calibrated magnetic coils. higher certification costs (IEC 60947-2 industrial standards vs. household standards). If your application truly requires Z-Curve sensitivity, the premium is well worth it — protecting one PLC or precision instrument is worth far more than the price difference of the breaker itself.

Z-Curve MCB Manufacturer in China

Choosing the right circuit protection for sensitive equipment is NOT always easy. If the breaker reacts too slow, your expensive devices pay the price. If it trips too easily for no real reason, your whole line stops – and you’re left explaining to your boss or clients why the shipment is delayed. We’ve seen both cases. Neither is fun.

That’s why we developed the Z-Curve MCB to give you a simple answer. It detects faults quickly and cuts power at the right moment. Your systems stay protected. And those frustrating nuisance trips that waste your time and money? They become a rare exception, not a daily headache.

Whether you are building control panels, managing electrical projects, or looking for a long-term OEM partner – our Z-Curve MCB adapts to your needs, not the other way around. We work with you to make sure it fits, because we know every project is a little different.

ISO
CB
CE
SAA
RoHS

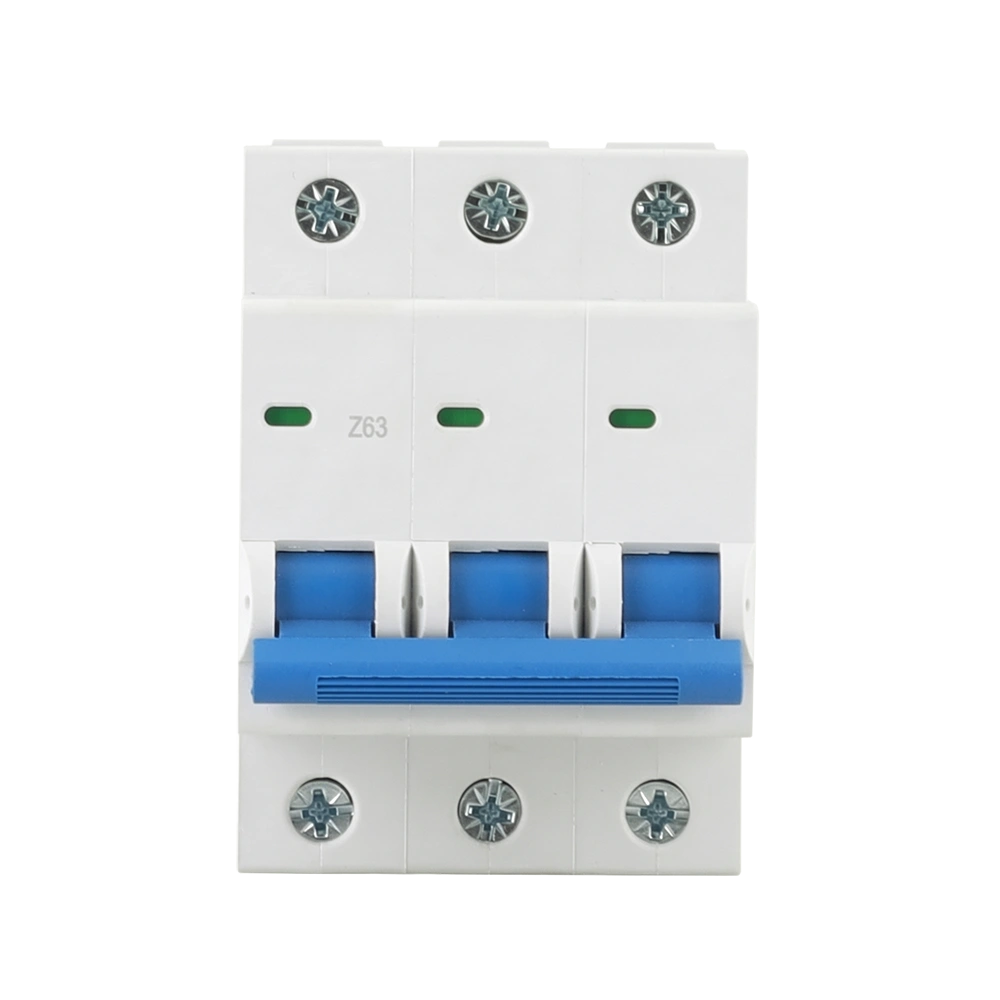

Front view of a white three-pole circuit breaker with a single blue handle linking three switches. It features three sets of screw terminals at the top and bottom, and three small green indicator windows, with the label 'Z63' printed above the leftmost window.

Key Specifications

The Numbers That Matter for Your Setup

No one likes flipping through dense spec sheets. Here are the core parameters of our Z-Curve MCB — clear and easy to match with your project requirements.

Trip CharacteristicsZ Curve
Rated CurrentMultiple Ratings Available
Pole Options1P / 2P / 3P / 4P
Breaking Capacity6kA / 10kA
Standards ComplianceIEC 60947-2
Installation35 mm DIN Rail Mounting

What Is a Z Curve MCB?

If you haven‘t worked with a Z Curve MCB before, you’re not alone. It‘s not as common as B or C Curve breakers — in fact, many of the local factories around us here in China don’t even produce them, and some have never even heard of them. So let‘s clear that up.

A Z Curve MCB is simply a miniature circuit breaker that responds faster than standard ones. It‘s built for systems where even a brief overcurrent can damage sensitive components — think control panels, automation gear, or precision electronics.

Like any MCB, it offers both thermal and magnetic protection. The thermal part handles prolonged overloads. The magnetic part reacts instantly to short circuits. What sets the Z Curve apart is its magnetic trip threshold — it’s set lower and reacts sooner, so it catches faults before they can do real harm.

For you, this means fewer damaged boards, less unplanned downtime, and more confidence in your system‘s day-to-day operation. It’s not about having more protection — it‘s about having the right protection for the equipment that actually runs your business.

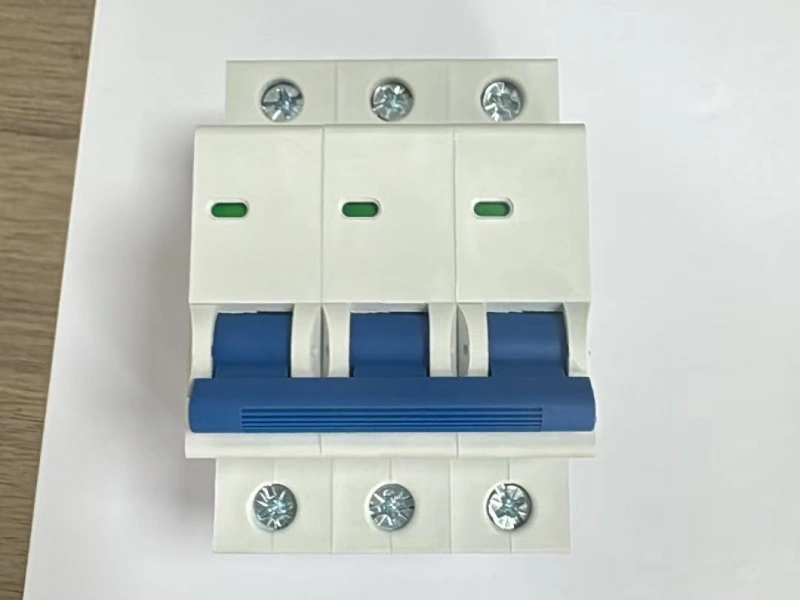

White 3-pole miniature circuit breaker with a blue linked handle, six screw terminals, and three green indicator windows. Z-curve, Z63 label.

Performance Characteristics

Not every electrical application requires the same level of protection. Understanding how different trip curves respond to faults helps you choose an MCB that matches your equipment, operating conditions, and protection requirements.

Reading the Trip Curve

The graph shows how our Z Curve MCB responds to faults. The bottom axis represents fault current — how much higher it is than the rated current. The vertical axis shows how quickly the breaker trips.

You’ll notice two stages. For moderate overloads, the thermal protection kicks in — the bigger the overload, the faster it trips. For short circuits, when the current reaches 2–3 times the rated value, the magnetic protection reacts almost instantly.

That‘s the Z Curve’s sweet spot: fast enough to protect sensitive electronics, without the nuisance trips that waste your time.

Z Curve vs B / C / D

The table below gives you a straight comparison across the four curves. We‘ve highlighted the Z column so you can see at a glance where it stands out — and where it doesn’t. Because honestly, no breaker is perfect for everything. You just need the one that‘s right for your situation.

Comparison	Z Curve	B Curve	C Curve	D Curve
Instantaneous Trip Range	2–3 × In	3–5 × In	5–10 × In	10–20 × In
Sensitivity	★★★★★ Highest	★★★★☆ High	★★★☆☆ Medium	★★☆☆☆ Low
Trip Speed	Fastest Millisecond response	Fast	Moderate	Slower
Inrush Current Tolerance	Low	Moderate	High	Very High
Typical Applications	PLCs Control Panels Instrumentation Semiconductor Equipment	Lighting Circuits Socket Circuits	Commercial Buildings General Distribution HVAC	Motors Transformers Welding Equipment
Risk of Nuisance Tripping	High in Motor Circuits	Low	Very Low	Minimal
Recommended For	Sensitive electronic equipment requiring fast fault isolation.	Lighting and long cable runs.	General commercial and industrial circuits.	Loads with high startup or inrush current.

Where Z Curve MCBs Perform Best?

How do you know if you actually need a Z Curve MCB? Here‘s a simple rule: if your equipment is sensitive, expensive, and hard to replace — and if a random trip would cost you more than a faulty circuit — then this curve deserves a close look. The applications below are where we see it deliver the most value. See if any of them match your project.

Data Centers & IT Infrastructure

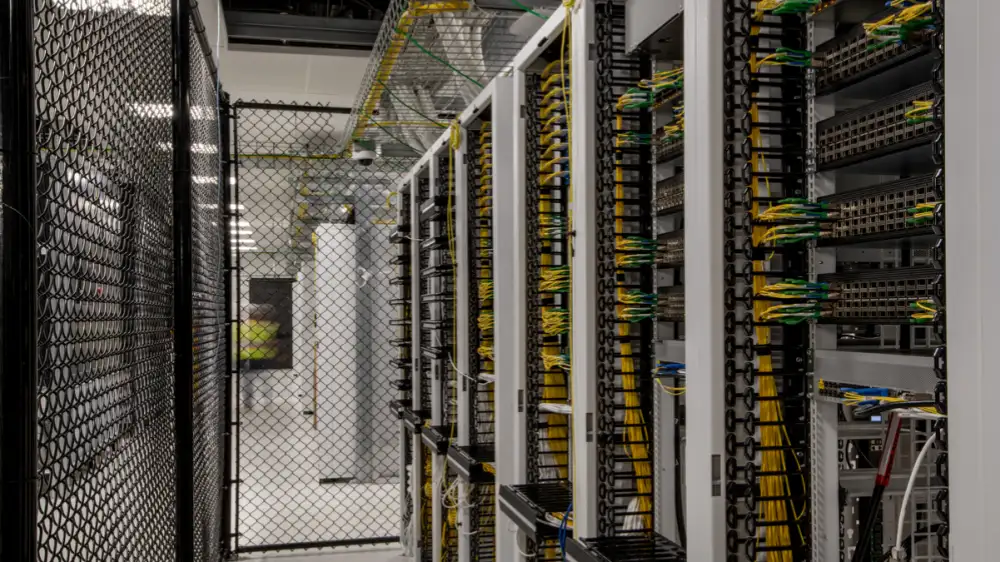

Server rack PDUs · Core switches · UPS systems
Stop nuisance tripping. Stop silent failures. Servers and switches hate false trips from inrush noise just as much as they hate real faults.
The Pain: The wrong curve either causes nuisance downtime or fails to clear small faults that degrade power supplies and logic boards over time.
Z-curve MCB Value: Tight 2–3× trip band gives sensitivity without nuisance trips. PDUs protect critical loads while keeping uptime within SLA.
EV Charging Stations

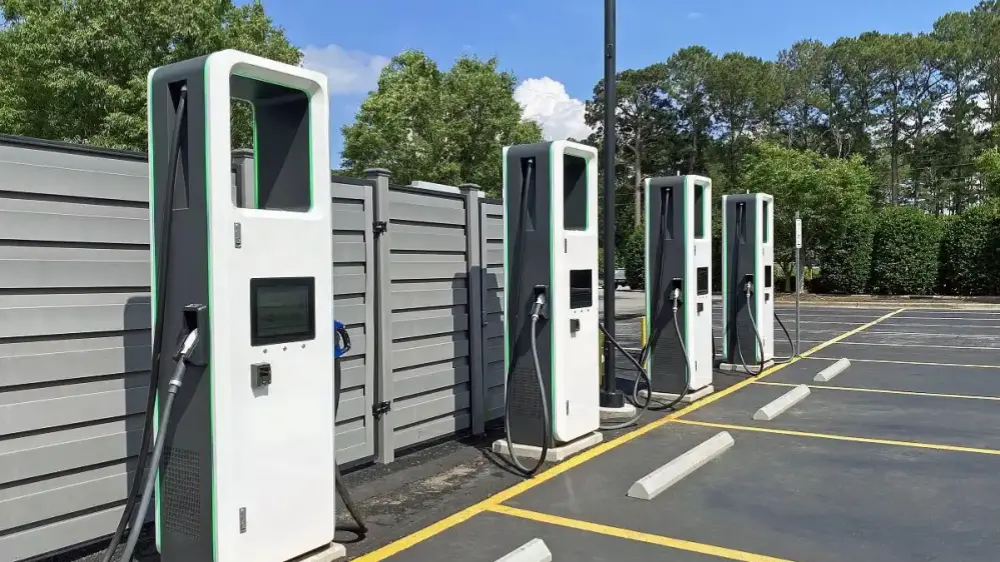

Charger control units · Home & commercial
Protect the brains of your charger. Modern EV chargers pack control boards, comms modules, and power semiconductors into a compact space —— with no room for error.
The Pain: A minor grid fault not cleared in time can destroy the main controller — costing thousands in board replacement and lost charging revenue.
Z-curve MCB Value: Trips at 2–3× In, clearing faults before they reach silicon. Extends charger life, cuts service calls, lowers OEM warranty exposure.
Telecom & Microwave Systems

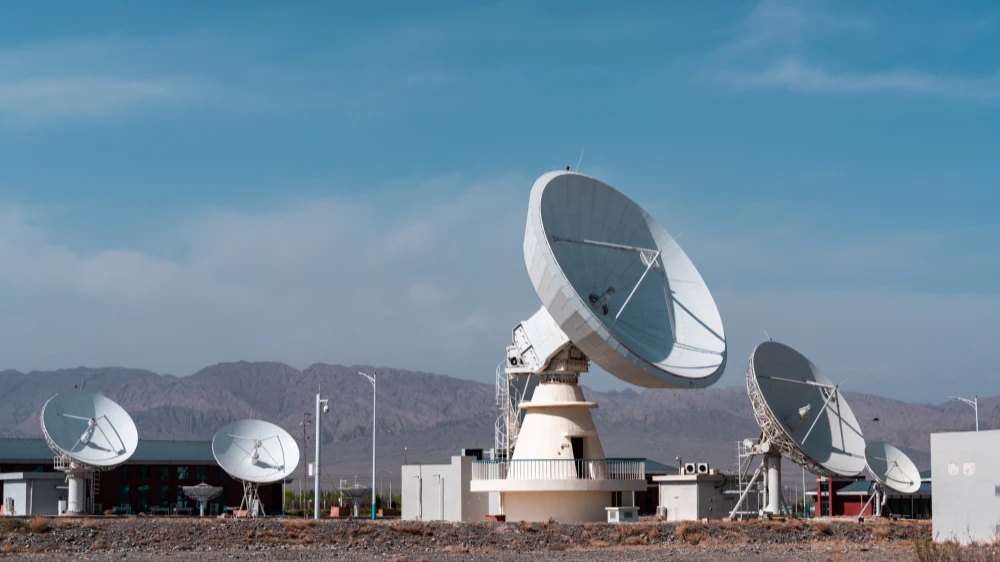

5G base stations · Satellite ground · Transmitters
Keep remote sites online, not on trucks. Base stations and satellite terminals face unstable grids and harsh conditions — and nobody wants a 3-hour drive just to reset a breaker.
The Pain: Low-power RF components are extremely fault-sensitive. A small short can cascade into main power supply failure across the entire site.
Z-curve MCB Value: Instant response to low-level shorts stops local faults from spreading. Fewer site visits, lower OPEX, higher network availability.
Semiconductor & Precision Equipment

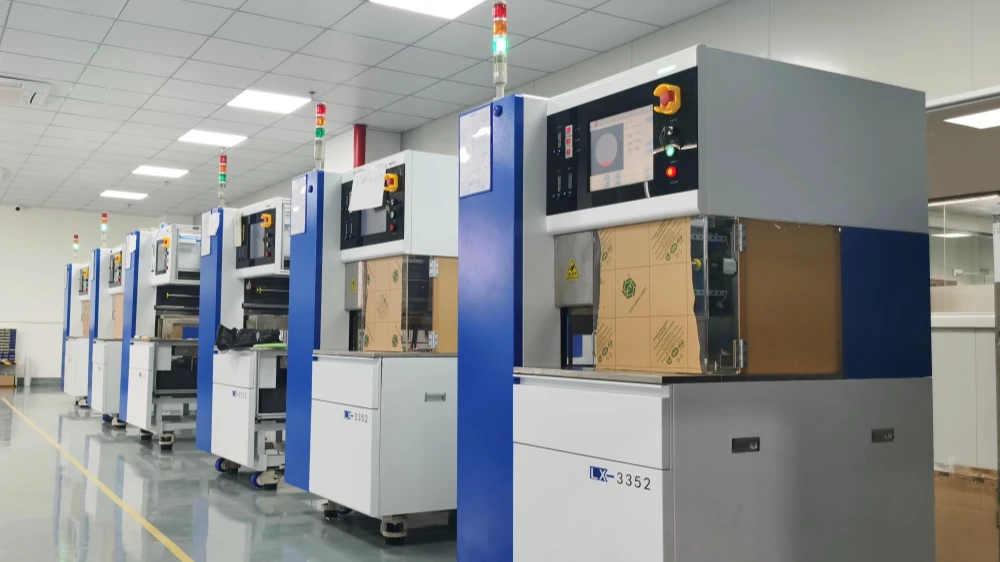

PLC cabinets · Wafer fab · SMT pick-and-place
Don't let a $20 fault kill a $20k PLC. Automation runs on microcontrollers, servo drives, and IGBTs with very low thermal thresholds — they can't take a even a brief hit.
The Pain: Even a short overcurrent can cause irreversible damage to expensive control boards, leading to unplanned production stops and costly replacements.
Z-curve MCB Value: Instant trip between 2–3× In isolates faults before junctions overheat. Keeps SMT lines and wafer fabs running without interruption.
Medical & Diagnostic Instruments

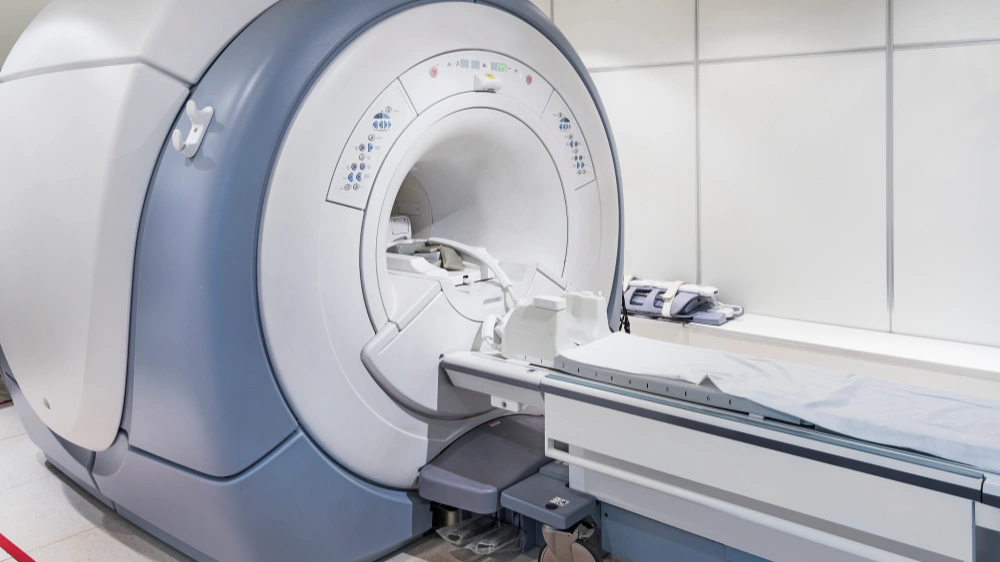

MRI · CT scanners · Lab analyzers
Where patient safety meets equipment reliability. MRI, CT, and analyzers rely on sensitive sensors and imaging electronics that can't tolerate even mild overcurrent stress.
The Pain: Prolonged overcurrent exposure — even at low levels — gradually degrades high-cost imaging boards, leading to premature replacement and unplanned downtime.
Z-curve MCB Value: Sub-10ms fault clearing prevents gradual deterioration of expensive boards. Extends MTBR and helps meets IEC medical standards.

Why Work With Us?

You‘re not just looking for a box of MCBs. You’re looking for an expert who solves your problem, delivers on time, backs up their products, and actually picks up the phone when something comes up. Here‘s what we offer — and what it means for your day-to-day.

Custom Options
We offer technical customization — from rated current and trip settings to internal configurations. You get a breaker that matches your exact circuit design.
Full Certifications
CB/CE/RoHS/SAA — fully certified across the board. That means global compliance, smoother customs, and one less thing to worry about when you ship worldwide.
100% Tested
Every MCB goes through full electrical and mechanical testing before it leaves our factory. You get consistent, reliable products, batch after batch, right out of the box.
Flexible Modes
OEM, ODM, or SKD/CKD — we adapt to your business model, not ask you to adapt to ours. You stay in full control of your brand and your entire supply chain.
Warranty
We back our products with a 1-year warranty against defects or performance issues. If something isn't right, we make it right — quickly and without hassle.
Fast Sampling
Samples ship within 48 hours. A dedicated project manager gets back to you within 24 working hours — because waiting on a reply slows everyone down.
Low MOQ
Start with a small trial order to test our quality and service before committing to larger volumes. We want you to be confident in our products before you scale up.
Technical Support
Our engineers are available to help with selection, integration, and troubleshooting. You get real answers from real experts — not just a sales rep reading off a spec sheet.

What Affects the Price of a Z-Curve MCB?

Every project has different technical and purchasing requirements. The following factors have the greatest impact on the final quotation for a Z Curve MCB.

The "Z Curve" Premium
B, C, and D Curve breakers are made by the millions, keeping costs low. Z Curve breakers are specialty items — smaller batches, more precise calibration. That naturally makes them more expensive.
Poles & Amperage
A simple 1-pole 10A breaker uses far less copper and silver inside than a heavy-duty 4-pole 63A industrial unit. More poles and higher current mean more materials and more complex assembly — and that directly affects the final price.
Breaking Capacity
A 10kA breaker has to safely handle much larger short circuits than a 6kA one. That means beefier internal components, more robust arc-extinguishing chambers, and tougher contact materials — all of which add to the manufacturing cost.
Order Volume
Larger orders get better per-unit pricing because we can spread fixed production costs across more pieces. Small trial batches cost a bit more, but full container orders unlock our very best factory-direct wholesale rates.

Customer Stories

We don‘t just ship standard products. Sometimes a customer comes to us with a requirement that isn’t in any catalog. Here‘s how we worked with one client to get it right — not on the first try, but on the one that counted.

Custom Low Heat Z-Curve MCB for a Swedish EV Charging Station Manufacturer

Industry: EV Charging Infrastructure
Location: Sweden
Product: Custom Z-Curve MCB

The Challenge

Our client is a Swedish EV charging station manufacturer. Their chargers run in compact enclosures with high ambient temperatures and continuous 63A load — so heat buildup is a real concern. They needed a Z-curve MCB that could handle the current without turning their enclosure into an oven.

Original Technical Specifications:

Configuration: 3 Poles
Rated Current (In): 63 A continuous load
Trip Characteristic: Curve Z (magnetic trip 2-3 x In, or preferably anywhere between 100-160 A)
Sizing: Standard DIN-size
Core Challenge: Specified low heat dissipation at 63 A continuous load.
Cost & Thermal Optimization: The thermal element was optional to reduce cost and lower heat
dissipation, or could be replaced with a higher-rated element (e.g., 80 A/100 A) to manage heat.

Our Approach

Round 1: Remove the Thermal Element

To hit their heat target, our R&D team took an unconventional approach: we removed the bimetallic thermal overload element entirely and kept only the magnetic trip mechanism. This lowered internal resistance and cut heat generation significantly.

The client tested the first sample in their lab. They liked what they saw — but they also found room for improvement. Here‘s their feedback:

“We did some power-dissipation tests, and it performs at about 4.2 W per pole at 63 A which is pretty good. At 10 A, most of the power-dissipation (59 %) came from the actual contact point which we also easily damaged by high current breaking since it has ball form, small contact area and seem to have thin layers of contact protective materials. Calculating from measurements at 63 A the contact point generates roughly 40 % of the heat dissipation.

The inner parts of the MCB looks sturdy and well dimensioned. Coil with flat conductor looks good. Braids are thick or doubled. So, I think the construction looks very good… Could anything be done to the contact point? Specially making it sturdier for long time use…

As of now, I like the samples. Sure, the heat-dissipation in the contact point is higher than expected, but the lifespan of the contact point is very important to us.”

Their message was clear: the overall design was solid, but the contact point needed to be tougher — both for heat and for long-term durability.

Round 2: Change the Contact

We took their feedback seriously. If the contact point was generating 40% of the heat and also showed signs of wear from short-circuit testing, that’s where we needed to focus our efforts.

We went back to the drawing board on the contact point and made two specific upgrades:

Geometry Transformation: We replaced the original ball-shaped contact with an inverse radius design on a thick welded contact point, matched with a slightly smaller outer radius on the contact arm. This created a wider, more stable face-to-face contact area.
Material & Coating Enhancement: We switched to a premium anti-arc, anti-welding alloy and thickened the protective coating — so the contact can handle repeated short-circuit stresses over years of use.

The Result

We shipped the second sample with the changed contact design to Sweden. The client ran the same power-dissipation tests they had done the first time — so the comparison would be apples to apples.

“Yes, thank you! We have tested the new sample with better contact and it performs 15-20 % better heat wise, which is quite a lot and in our application where heat matters a lot. This is important. So I think we are happy technically now and can move on to the next step.”

A 15–20% improvement in heat performance — from a customer who already thought the first version was “pretty good.” That’s the kind of outcome we aim for.

Key Outcomes at a Glance

15% - 20%
Reduction in Contact Heat Dissipation
2-3x In
Precise Magnetic Tripping Protection
Enhanced
Contact Lifespan & Short-Circuit Survival

FAQs

Here are answers to the questions we hear most often — especially from engineers who are new to Z Curve or comparing it with other options.

Can I use a Z Curve MCB in a home distribution box?
Technically yes, but we usually don’t recommend it. Common home loads like lighting, sockets, air conditioners, and refrigerators — all have startup inrush currents but are not considered “sensitive electronic equipment.”

Using a Z-Curve for ordinary appliances may cause frequent nuisance tripping due to motor or compressor startup, affecting daily life. For home use, C-Curve is the more conventional and sensible choice.
Can a Z Curve MCB protect motors?
Generally not recommended.

Motors and transformers draw large inrush currents during startup — often 5–10 times their rated currents. A Z-Curve MCB trips instantly at 2–3× In, so the motor won’t even start.

For motor protection, choose K-Curve (8–14× In) or D-Curve (10–20× In). Z-Curve is designed for sensitive electronic loads with very low inrush current, not motors.
What is the difference between Z Curve and K-Curve MCB?
Both of them are less common industrial curves, but they serve opposite purposes.

Z-Curve trips at 2–3× In — ultra-sensitive, designed to protect precision electronic equipment from minor overcurrent damage.

K-Curve trips at 8–14× In — motor-friendly, able to withstand motor startup surges while providing thermal overload protection (1.05–1.2× In thermal trip).

In short: Z is for sensitive gear, K is tough gear.
How do I know if my equipment needs a Z Curve MCB?
Check your equipment’s inrush current during startup. As a general rule: if the inrush current is less than 3 times the rated current (3× In) and your equipment is sensitive electronics, go with Z Curve.

For inrush between 3–5× In, choose B Curve. For 5–10× In or general-purpose loads, C Curve is the right fit. And for heavy inrush above 10In—typical for large motors and transformers—you will need D-Curve.

If you are not sure about your equipment’s inrush current, check the nameplate for “starting current” or “inrush current” specifications, or consult your equipment manufacturer for guidance.
Can a Z Curve MCB be used in DC circuits?
It depends on the specific model. Some Z Curve MCBs are rated for both AC and DC, but you must check the DC ratings in the datasheet — the same product typically has a lower breaking capacity in DC than in AC (because DC arcs are harder to extinguish).

Never assume an AC-rated MCB can be used in a DC circuit. Always confirm that the datasheet explicitly lists DC voltage and current ratings.
Which standard does a Z Curve MCB comply with? IEC 60898 or IEC 60947?
Z Curve MCBs are typically manufactured to IEC/EN 60947-2 (the industrial standard for circuit breakers), not the household standard IEC/EN 60898-1. IEC 60947-2 has higher requirements for breaking capacity, electrical endurance, and overload characteristics.

If your Z Curve MCB is for industrial equipment export, you must confirm it complies with IEC 60947-2 — this is a basic requirement for industrial buyers in the European market.
How much more does a Z Curve MCB cost compared to a C-Curve?
Z-Curve MCBs are industrial-grade specialty products with much lower production volumes than general-purpose C-Curve types. The price is typically 50% or more higher than the same specification C-Curve. The cost difference comes from:
1. smaller production runs, with higher tooling and production line costs per unit.
2. more complex manufacturing with precision-calibrated magnetic coils.
3. higher certification costs (IEC 60947-2 industrial standards vs. household standards).
If your application truly requires Z-Curve sensitivity, the premium is well worth it — protecting one PLC or precision instrument is worth far more than the price difference of the breaker itself.

Ready to Get Started?

Have a question or a need we can help with? Send us a message — our product manager will reply within 24 hours with a tailored solution.
